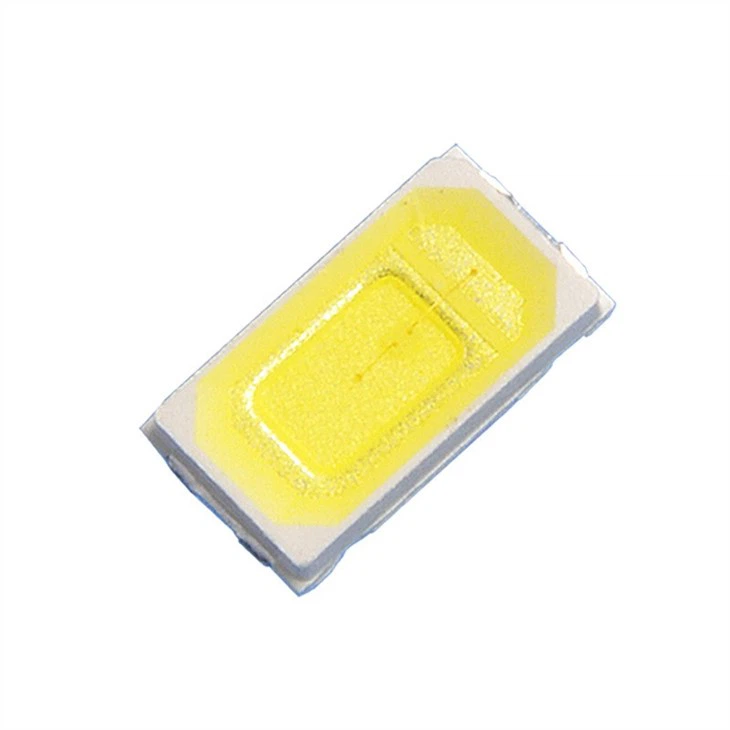

Smd sglodion dan arweiniad 5730

5730 golau lliw LED: 5730 golau coch, 5730 golau gwyrdd, 5730 golau melyn, 5730 golau glas, 5730 golau oren, ac ati.
Ongl allyrru golau gleiniau lamp 5730: 120 gradd
5730 cerrynt blaen gleiniau lamp: 150mA, cerrynt pwls ymlaen: 500mA
Foltedd ymlaen gleiniau lamp 5730: 3.0-3.3V, foltedd gwrthdro: 5V

Anfon ymchwiliad

sglodion dan arweiniad smd 5730

led 5050 5630

Nodweddion Cynnyrch sglodion dan arweiniad smd 5730:

5730 golau lliw LED: 5730 golau coch, 5730 golau gwyrdd, 5730 golau melyn, 5730 golau glas, 5730 golau oren, ac ati.

Ongl allyrru golau gleiniau lamp 5730: 120 gradd

5730 cerrynt blaen gleiniau lamp: 150mA, cerrynt pwls ymlaen: 500mA

Foltedd ymlaen gleiniau lamp 5730: 3.0-3.3V, foltedd gwrthdro: 5V

Manylebau:

Enw Cynnyrch	CRI uchel 0.5W LED SMD 5730	Model Cynnyrch	BW{0}}WX1055
Gwasgariad Pŵer	0.5W	CRI	Ra80 Ra90 Ra95 a mwy
Foltedd Ymlaen	2.8-3.4V	Gweld Ongl	120 gradd
Ymlaen Cyfredol	150mA	Tymheredd Gweithredu	-40~ plws 60 gradd
Fflwcs goleuol	55-60-65-70-75LM	Tymheredd Storio	-40~ plws 85 gradd
Tymheredd Lliw	2000-15000K	Tymheredd sodro	260 gradd

5730 MANYLEB CYFRES LED
Enw Cynnyrch	Lliw Golau	CCT/Tonfedd	foltedd	Cyfredol	Lumen	Sylw
0.5W 5730 LED	Melyn Aur	1800-2000K	2.8-3.4V	150mA	55-60LM	CRI80,90
0.5W 5730 LED	Gwyn	3000-6500K	2.8-3.4V	150mA	55-75LM	CRI80,90,96 a mwy
5730 UV LED	UV	365-370nm	2.8-3.4V	150mA	/	0.5W
5730 UV LED	UV	375-420nm	2.8-3.4V	150mA	2-4LM	0.5W
5730 LED Glas	Glas	440-470nm	2.8-3.4V	150mA	10-14LM	0.5W
5730 LED Gwyrdd	Gwyrdd	520-530nm	2.8-3.4V	150mA	40-45LM	0.5W
2835 LED melyn	Melyn	590-595nm	2.0-2.4V	150mA	14-16LM	0.5W
5730 Ambr LED	Ambr	600-610nm	2.0-2.4V	150mA	12-14LM	0.5W
5730 LED coch	Coch	620-630nm	2.0-2.4V	150mA	20-24LM	0.5W
5730 Coch Pell	Coch Pell	660-665nm	2.0-2.4V	150mA	8-9LM	0.5W
5730 IR LED	IR	730-740nm	1.8-2.4V	150mA	/	0.5W
5730 PC Glas	Ffosffor Glas	450-470nm	2.8-3.4V	150mA	20-30LM	0.5W WD wedi'i addasu, WP
5730 PC Gwyrdd	Gwyrdd Ffosffor	510-530nm	2.8-3.4V	150mA	50-70LM
5730 Lliw PC	Ffosffor Ambr/Coch	600-630nm	2.8-3.4V	150mA	30-40LM
